EMC Site Validation
DARE! Calibrations performs calibrations under accreditation. These calibrations are accredited by the Raad van Accreditatie (RvA). Under this accreditation, can we calibrate Faraday Cages, Open Area Test Sites (OATS) and Anechoic rooms.
DARE!! Calibrations is a renowned laboratory in the field of RF and EMC calibrations. Besides calibrating RF measuring instruments like measurement receivers and antennas, it is now also possible to validate Cages of Faraday, Anechoic rooms and Open Area Test Sites (OATS). The measurements are divided in four sections: attenuation measurements, Normalized Site Attenuation (NSA), Field strength homogeneity and Site Voltage Standing Wave Ratio (S-VSWR).
Shielding effectiveness measurements are performed in shielded rooms or so called Faraday Cages. These rooms are used to keep electro magnetic (EM) fields inside or outside the room. Applications for these rooms include measurement chambers, computer rooms and medical shielded rooms, like the ones used for MRI-scanners. The level to which such chambers are shielding EM-fields is represented by the ratio of the field inside and outside the room over a certain frequency band.
DARE!! Calibrations is accredited for the range between 10 kHz and 18 GHz in conformity with EN 50147-1 and MIL 285 standards.
Normalized Site Attenuation
Normalized Site Attenuation or NSA measurements are performed to validate the performance of anechoic chambers or Open Area Test Sites (OATS). These measurements are performed with horizontal as well as vertical polarized antenna orientation. The measured values over the frequency range of 30 MHz and 1 GHz have to be within the limits prescribed by the standard. DARE!! Calibrations performs NSA validation in conformity with the ANSI C63.4 en CISPR 16-1-4 standards.

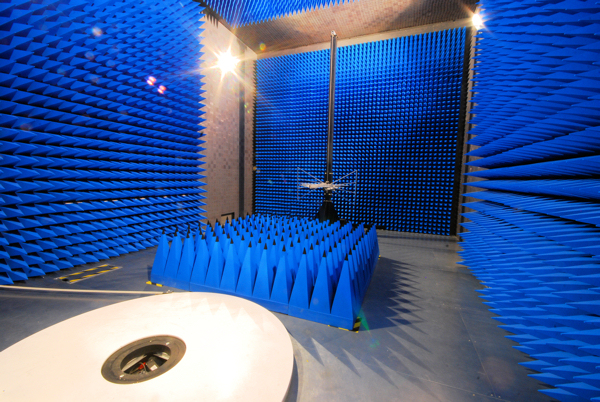

EMC measurements are often performed in so called anechoic chambers. It is of the utmost importance that the field strength in a certain area (quiet zone, often 2 by 2 meters) is homogeneous. This validation has to be performed before the room can be used for accredited measurements. DARE!! Calibrations is accredited for this validation in the frequency range from 26 MHz to 18 GHz in conformity to EN61000-4-3.
The Voltage Standing Wave Ratio (VSWR) of a room is a relatively new requirement for chambers used above 1 GHz. Every room used for accredited measurements should fulfill the requirements of the standard. The quality of the absorbers and the part of the wall surface that is actually covered with absorbers is the main contributor to the fulfillment of this requirement. DARE!! Calibrations is accredited for Site VSWR validations in the frequency range from 1 GHz to 18 GHz in conformity with CISPR 16-1-4.
EMC and RF Calibrations
DARE!! Calibrations aims to perform EMC and RF calibrations under accreditation. Recently Antenna-calibrations as well as ESD validations and calibrations of measurement receivers including CISPR detectors were added to the scope. The expansion of the scope with EMC site validation services is a welcome completion of our service offering.
All over Europe!
DARE!! Calibrations performs RF and EMC calibrations for renowned companies and institutes in the industry all over Europe and Turkey. Our calibration services are represented in every country in Europe by a network of professional partners.
"We used DARE!! Calibrations for the calibration of our whole EMC test and measurement equipment as well as for the measurement of the shielding effectiveness and normalized site attenuation of our 3m semi-anechoic chamber. Their service and staff is very professional, friendly and serious with an important background of experience. They can offer a broad scope of RVA-accredited calibrations for high frequencies. Their quotation is very detailed and their prices are highly competitive. They have even a service to personally collect and bring back our (sensitive) instruments. This was very important for us, as we made bad experiences in the past with third party shippers as the instruments came sometimes back damaged. I am convinced by their service, that I want to use them for future calibrations."
